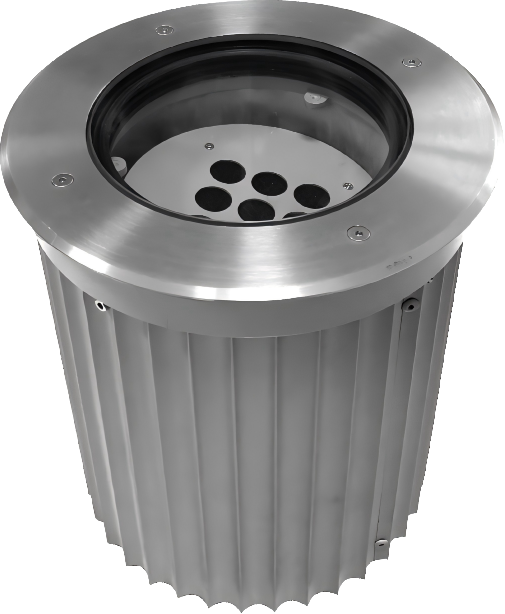

Buried Light RLL-M220BC
◎Projection angle adjustable
◎Made of aluminum
◎High quality stainless steel panel
◎Full anti-glare function design
◎Patented structural waterproofing treatment
◎Low thermal resistance heat dissipation design
◎Professional-grade optical design for high efficiency and uniform light distribution
◎High-efficiency power supply design with high PF value and low heat generation
◎Outdoor lightening and ESD protection
Description
| Model | Housing Material | Light Source | Power | Operating Voltage | Drive Current | Color Temperature |
|---|---|---|---|---|---|---|
| RLL-M220BC-6M | Die-cast Aluminum | 6×1W | 6W | AC220V | 340mA | Fixed |
| RLL-M220BC-9M | Die-cast Aluminum | 9×1W | 9W | AC220V | 340mA | Fixed |
| RLL-M220BC-12M | Die-cast Aluminum | 6×2W | 12W | AC220V | 680mA | Fixed |
| RLL-M220BC-18M | Die-cast Aluminum | 9×2W | 18W | AC220V | 680mA | Fixed |
| RLL-M220BC-6R | Die-cast Aluminum | 6×1W | 6W | DC24V | 3×340mA | RGB |
| RLL-M220BC-9R | Die-cast Aluminum | 9×1W | 9W | DC24V | 3×340mA | RGB |
| RLL-M220BC-12R | Die-cast Aluminum | 6×2W | 12W | DC24V | 3×680mA | RGB |
| RLL-M220BC-18R | Die-cast Aluminum | 9×2W | 18W | DC24V | 3×680mA | RGB |
PARAMETERS
Color: RGB/RGBW/ Day white/ Warm white/Yellow
Light source: High Power1W/3W
Beam angle:8°/15°/30°/45°/60°，and more available options.
Work temperature: -20℃～50℃
Storage temperature: -40℃～70℃
Input voltage: DC24V/AC24V/AC220V
Control mode: DMX512
IP Rating: IP67
Life: 50,000h
