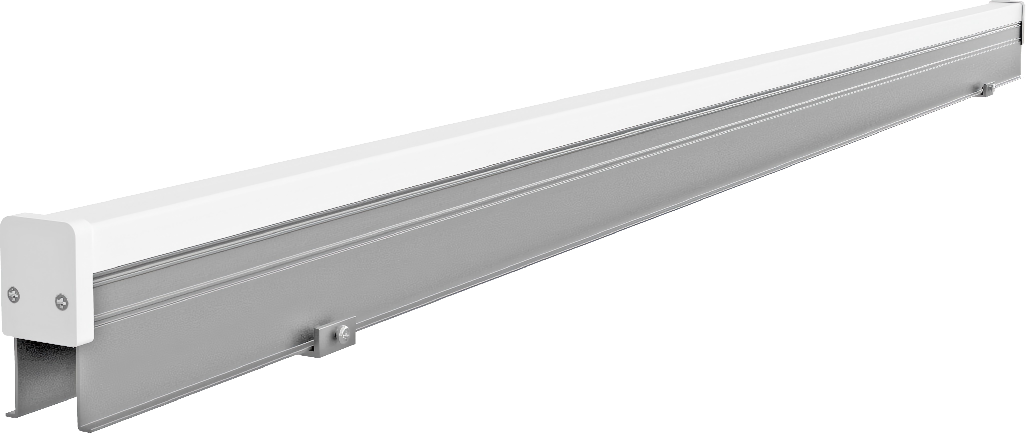

Fence Tube RLL-H22L
◎Aluminum alloy lamp holder
◎Seamless connecting design for lighting
◎Low thermal resistance paths design for heat dissipation
◎Waterproof design with high thermal conductive silicone fully sealed
◎Thermoelectric Separation
◎Excellent ventilation
◎Hidden lines design
◎Outdoor lightning and ESD protection
Description
| Model | Housing Material | Light Source | Power | Operating Voltage | Length | Color Temperature |
|---|---|---|---|---|---|---|
| RLL-H22L-6M | Aluminum Alloy | 24PCS | 6W | DC24V | 500mm | Fixed |
| RLL-H22L-9M | Aluminum Alloy | 36PCS | 9W | DC24V | 1000mm | Fixed |
| RLL-H22L-12M | Aluminum Alloy | 48PCS | 12W | DC24V | 1000mm | Fixed |
| RLL-H22L-6R | Aluminum Alloy | 24PCS | 6W | DC24V | 500mm | RGB |
| RLL-H22L-9R | Aluminum Alloy | 36PCS | 9W | DC24V | 1000mm | RGB |
| RLL-H22L-12R | Aluminum Alloy | 48PCS | 12W | DC24V | 1000mm | RGB |
PARAMETERS
Colors: RGB/RGBW/Day white/ Warm white/ Yellow
Light source: 5050/0.3W 2835/0.2W
Beam angle: 120°
Input Voltage: DC24V
Storage Temperature: -40℃~70℃
Work Temperature: -20℃~50℃
Control mode: DMX512
IP rate:IP66
Life: 50,000h
