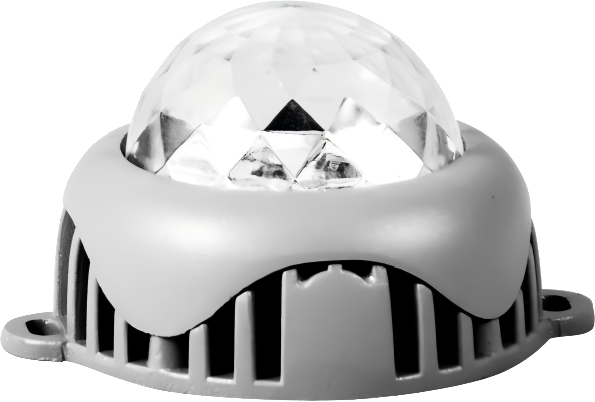

Point Light Source RLL-D70C
◎Aluminum alloy lamp design
◎Acrylic shade
◎Waterproof Treatment of Patented Structures
◎Low thermal resistance paths design for heat dissipation
◎High thermal conductivity silicone waterproof design
◎Thermal separation design
◎Outdoor lightning and static electricity (ESD) protection design special
Description
| Model | Housing Material | Light Source | Power | Operating Voltage | Drive Current | Color Temperature |
|---|---|---|---|---|---|---|
| RLL-D70C-2.2M | Aluminum Alloy | 9PCS | 2.2W | DC24V | 60mA | Fixed |
| RLL-D70C-3M | Aluminum Alloy | 12PCS | 3W | DC24V | 60mA | Fixed |
| RLL-D70C-2.2R | Aluminum Alloy | 9PCS | 2.2W | DC24V | 60mA | RGB |
| RLL-D70C-3R | Aluminum Alloy | 12PCS | 3W | DC24V | 60mA | RGB |
PARAMETERS
Color: RGB full color, RGBW, day white, warm white, yellow
Led: 5050/0.3W 2835/0.2W
Beam angle: 120°
Work temperature: -20℃～50℃
Storage temperature: -40℃～70℃
Work Voltage: DC12V、DC24V
Control mode: DMX512
IP rate: IP66
Life: 50000h
