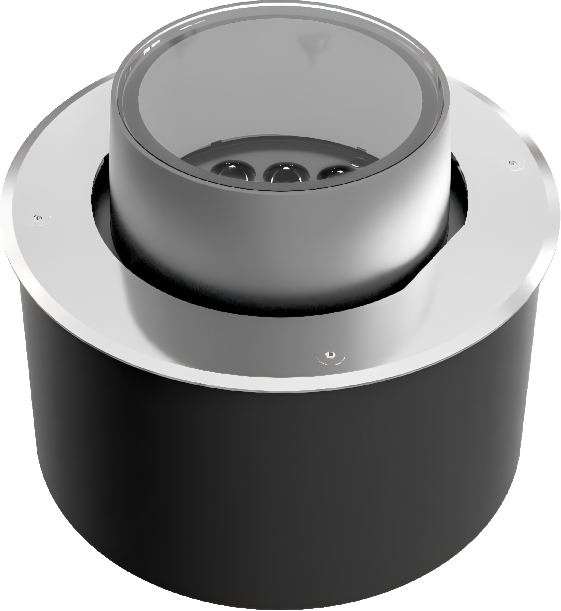

Buried Light RLL-M160RC
Buried Light RLL-M160RC - Image 2

Buried Light RLL-M160RC

◎Made of aluminum
◎High quality stainless steel panel
◎Full anti-glare function design
◎Patented structural waterproofing treatment
◎Low thermal resistance heat dissipation design
◎Professional-grade optical design for high efficiency and uniform light distribution
◎High-efficiency power supply design with high PF value and low heat generation
◎Outdoor lightening and ESD protection

Category:

Description



Model Housing Material Light Source Power Operating Voltage Drive Current Color Temperature
RLL-M160RC-12M Die-cast Aluminum 12×1W 12W AC220V 340mA Fixed
RLL-M160RC-15M Die-cast Aluminum 15×1W 15W AC220V 340mA Fixed
RLL-M160RC-18M Die-cast Aluminum 18×1W 18W AC220V 340mA Fixed
RLL-M160RC-24M Die-cast Aluminum 12×2W 24W AC220V 680mA Fixed
RLL-M160RC-30M Die-cast Aluminum 15×2W 30W AC220V 680mA Fixed
RLL-M160RC-36M Die-cast Aluminum 18×2W 36W AC220V 680mA Fixed
RLL-M160RC-12R Die-cast Aluminum 12×1W 12W DC24V 3×340mA RGB
RLL-M160RC-15R Die-cast Aluminum 15×1W 15W DC24V 3×340mA RGB
RLL-M160RC-18R Die-cast Aluminum 18×1W 18W DC24V 3×340mA RGB
RLL-M160RC-24R Die-cast Aluminum 12×2W 24W DC24V 3×680mA RGB
RLL-M160RC-30R Die-cast Aluminum 15×2W 30W DC24V 3×680mA RGB
RLL-M160RC-36R Die-cast Aluminum 18×2W 36W DC24V 3×680mA RGB
Model (3 degree) Housing Material Light Source Power Operating Voltage Drive Current Color Temperature
RLL-M160RC-18M Die-cast Aluminum 6X3W 18W AC220V 1020mA Fixed
RLL-M160RC-30M Die-cast Aluminum 6X5W 30W AC220V 1020mA Fixed



PARAMETERS



Color: RGB/RGBW/Day white/ Warm white/ Yellow

Light sources: High Power 1W/3W

Beam angle: 3°, 8°, 15°, 30°, 45°, 60°，more available options

Work temperature: -20℃～50℃

Storage temperature: -40℃～70℃

Input voltage: DC24V/AC24V/AC220V

Control mode: DMX512

IP rating: IP67

Life: 50,000h
