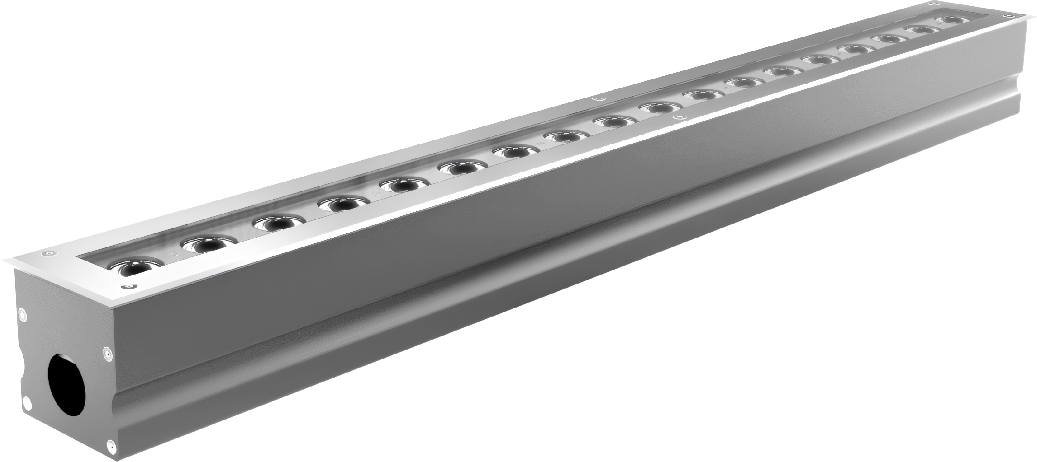

Buried Light RLL-M91L
◎Made of aluminum
◎High quality stainless steel panel
◎Patented waterproof structure
◎Separate installation of embedded parts
◎Thermal management to remove heat
◎Waterproof design with high thermal conductive silicone fully sealed
◎Thermoelectric separation
◎Outdoor lightning and ESD protection
Description
| Model | Housing Material | Light Source | Power | Operating Voltage | Length | Color Temperature |
|---|---|---|---|---|---|---|
| RLL-M91L-18M | Aluminum Alloy | 18X1W | 18W | DC24V | 1000mm | Fixed |
| RLL-M91L-24M | Aluminum Alloy | 24X1W | 24W | DC24V | 1000mm | Fixed |
| RLL-M91L-30M | Aluminum Alloy | 30X1W | 30W | DC24V | 1000mm | Fixed |
| RLL-M91L-36M | Aluminum Alloy | 36X1W | 36W | DC24V | 1000mm | Fixed |
| RLL-M91L-48M | Aluminum Alloy | 48X1W | 48W | DC24V | 1000mm | Fixed |
| RLL-M91L-36M | Aluminum Alloy | 18X2W | 36W | DC24V | 1000mm | Fixed |
| RLL-M91L-48M | Aluminum Alloy | 24X2W | 48W | DC24V | 1000mm | Fixed |
| RLL-M91L-60M | Aluminum Alloy | 30X2W | 60W | DC24V | 1000mm | Fixed |
| RLL-M91L-72M | Aluminum Alloy | 36X2W | 72W | DC24V | 1000mm | Fixed |
| RLL-M91L-36M | Aluminum Alloy | 12X3W | 36W | DC24V | 1000mm | Fixed |
| RLL-M91L-54M | Aluminum Alloy | 18X3W | 54W | DC24V | 1000mm | Fixed |
PARAMETERS
Color: RGB/ Day white/ Warm white/Yellow
Light source: High Power1W/3W
Beam angle:3°/8°/15°/30°/45°/60°/10X60°，and more available options.
Work temperature: -20℃～50℃
Storage temperature: -40℃～70℃
Input voltage: DC24V/AC24V/AC220V
Control mode: DMX512
IP Rating: IP67
Life: 50,000h
