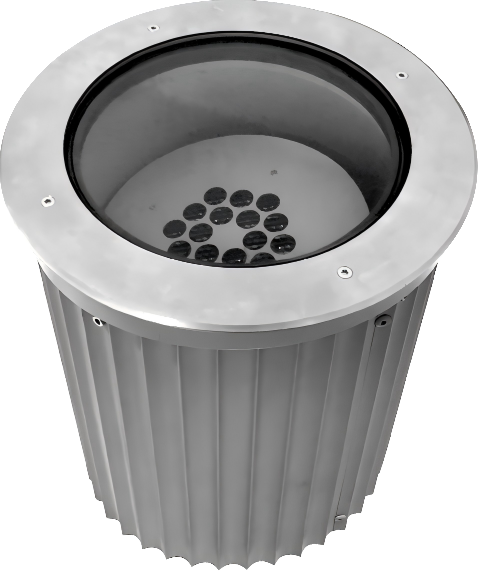

Buried Light RLL-M270BC
◎Optical effect projection angle adjustable
◎Made of aluminum
◎High quality stainless steel panel
◎Deep anti-glare function design
◎Separate installation of embedded parts
◎Thermal management to remove heat
◎Waterproof design with high thermal conductive silicone fully
◎Thermoelectric separation
◎Outdoor lightning and ESD protection
Description
| Model | Housing Material | Light Source | Power | Operating Voltage | Color Temperature | Drive Current |
|---|---|---|---|---|---|---|
| RLL-M270BC-12M | Die-cast Aluminum | 12×1W | 12W | AC220V | 340mA | Fixed |
| RLL-M270BC-15M | Die-cast Aluminum | 15×1W | 15W | AC220V | 340mA | Fixed |
| RLL-M270BC-18M | Die-cast Aluminum | 18×1W | 18W | AC220V | 340mA | Fixed |
| RLL-M270BC-24M | Die-cast Aluminum | 12×2W | 24W | AC220V | 680mA | Fixed |
| RLL-M270BC-30M | Die-cast Aluminum | 15×2W | 30W | AC220V | 680mA | Fixed |
| RLL-M270BC-36M | Die-cast Aluminum | 18×2W | 36W | AC220V | 680mA | Fixed |
| RLL-M270BC-12R | Die-cast Aluminum | 12×1W | 12W | DC24V | 3×340mA | RGB |
| RLL-M270BC-15R | Die-cast Aluminum | 15×1W | 15W | DC24V | 3×340mA | RGB |
| RLL-M270BC-18R | Die-cast Aluminum | 18×1W | 18W | DC24V | 3×340mA | RGB |
| RLL-M270BC-24R | Die-cast Aluminum | 12×2W | 24W | DC24V | 3×680mA | RGB |
| RLL-M270BC-30R | Die-cast Aluminum | 15×2W | 30W | DC24V | 3×680mA | RGB |
| RLL-M270BC-36R | Die-cast Aluminum | 18×2W | 36W | DC24V | 3×680mA | RGB |
PARAMETERS
Color: RGB/RGBW/ Day white/ Warm white/Yellow
Light source: High Power1W/3W
Beam angle:8°/15°/30°/45°/60°，and more available options.
Work temperature: -20℃～50℃
Storage temperature: -40℃～70℃
Input voltage: DC24V/AC24V/AC220V
Control mode: DMX512
IP Rating: IP67
Life: 50,000h
