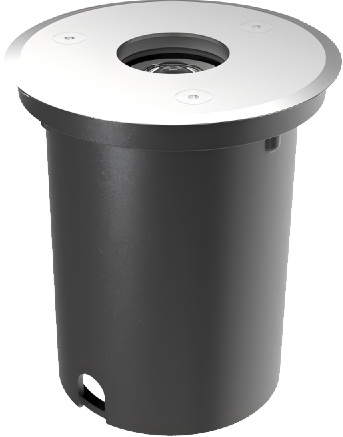

Buried Light RLL-M58C
◎Made of aluminum with modern design
◎High quality stainless steel panel
◎All toughened glass
◎Patented waterproof structure
◎Low thermal resistance paths design for heat dissipation
◎Professional optical design with high light-extraction efficiency (LEE) and
◎High efficiency, low heat power supply design and high
◎Outdoor lightning and ESD protection
Description
| Model | Housing Material | Light Source | Power | Operating Voltage | Color Temperature | Drive Current |
|---|---|---|---|---|---|---|
| RLL-M58C-1M | Die-cast Aluminum | 1X1W | 1W | AC220V | 340mA | Fixed |
| RLL-M58C-2M | Die-cast Aluminum | 1X2W | 2W | AC220V | 680mA | Fixed |
| RLL-M58C-3M | Die-cast Aluminum | 1X3W | 3W | AC220V | 1020mA | Fixed |
| RLL-M58C-1R | Die-cast Aluminum | 1X1W | 1W | DC24V | 340mA | RGB |
| RLL-M58C-2R | Die-cast Aluminum | 1X2W | 2W | DC24V | 680mA | RGB |
| RLL-M58C-3R | Die-cast Aluminum | 1X3W | 3W | DC24V | 1020mA | RGB |
PARAMETERS
Color: RGB/ Day white/ Warm white/Yellow
Light source: High Power1W/3W
Beam angle: 8°/ 15°/ 45°/ 60°，and more available options.
Work temperature: -20℃～50℃
Storage temperature: -40℃～70℃
Input voltage: DC24V/AC24V/AC220V
Control mode: DMX512
IP Rating: IP67
Life: 50,000h
