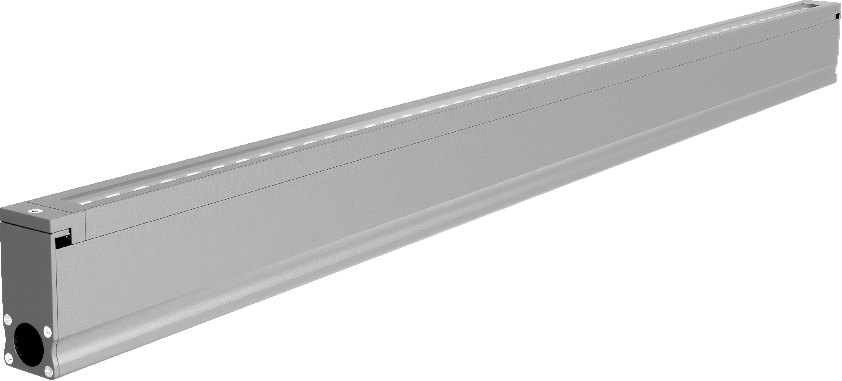

Buried Light RLL-M36L
◎Special anti-glare grille processing
◎Made of aluminum
◎5mm thick glass
◎Separate installation of embedded parts
◎Thermal management to remove heat
◎Waterproof design with high thermal conductive silicone
◎Thermoelectric separation
◎Outdoor lightning and ESD protection
Description
| Model | Housing Material | Light Source | Power | Operating Voltage | Length | Color Temperature |
|---|---|---|---|---|---|---|
| RLL-M36L-6M | Aluminum Alloy | 24PCS | 6W | DC24V | 500mm | Fixed |
| RLL-M36L-12M | Aluminum Alloy | 48PCS | 12W | DC24V | 1000mm | Fixed |
| RLL-M36L-15M | Aluminum Alloy | 60PCS | 15W | DC24V | 1000mm | Fixed |
| RLL-M36L-6R | Aluminum Alloy | 24PCS | 6W | DC24V | 500mm | RGB |
| RLL-M36L-12R | Aluminum Alloy | 48PCS | 12W | DC24V | 1000mm | RGB |
| RLL-M36L-15R | Aluminum Alloy | 60PCS | 15W | DC24V | 1000mm | RGB |
PARAMETERS
Color: RGB/ Day white/ Warm white/Yellow
Light source: 5050/0.3W 2835/0.2W
Beam angle:120°
Work temperature: -20℃～50℃
Storage temperature: -40℃～70℃
Input voltage: DC24V/AC220V
Control mode: DMX512
IP Rating: IP66
Life: 50,000h
