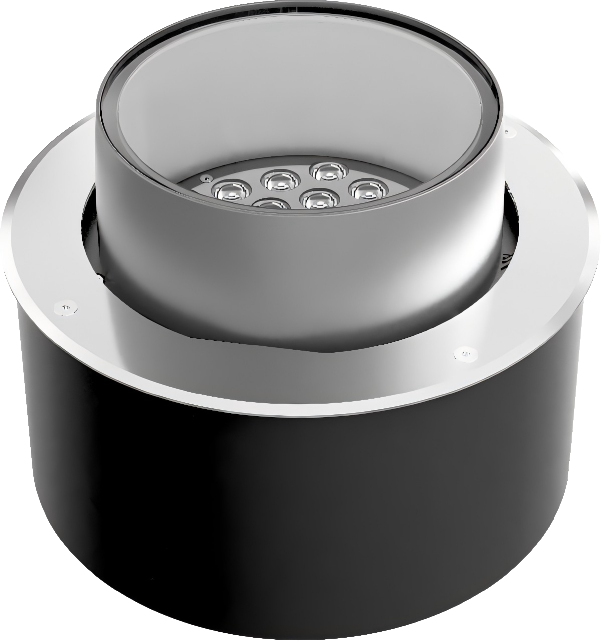

Buried Light RLL-M200RC
◎Projection angle can be adjusted in many directions
◎Made of aluminum
◎High quality stainless steel panel
◎Full anti-glare function design
◎Low thermal resistance paths design for heat dissipation
◎Patent waterproof structure
◎Professional optical design with high light-extraction efficiency (LEE) and uniformity of illumination
◎Low heating power supply design with high energy efficiency and high power factor (PF) value
◎Outdoor lightening protection
Description
| Model (usual angle) | Housing Material | Light Source | Power | Operating Voltage | Drive Current | Color Temperature |
|---|---|---|---|---|---|---|
| RLL-M200RC-24M | Die-cast Aluminum | 24×1W | 24W | AC220V | 340mA | Fixed |
| RLL-M200RC-30M | Die-cast Aluminum | 30×1W | 30W | AC220V | 340mA | Fixed |
| RLL-M200RC-36M | Die-cast Aluminum | 36×1W | 36W | AC220V | 340mA | Fixed |
| RLL-M200RC-48M | Die-cast Aluminum | 24×2W | 48W | AC220V | 680mA | Fixed |
| RLL-M200RC-60M | Die-cast Aluminum | 30×2W | 60W | AC220V | 680mA | Fixed |
| RLL-M200RC-24R | Die-cast Aluminum | 24×1W | 24W | DC24V | 3×340mA | RGB |
| RLL-M200RC-30R | Die-cast Aluminum | 30×1W | 30W | DC24V | 3×340mA | RGB |
| RLL-M200RC-36R | Die-cast Aluminum | 36×1W | 36W | DC24V | 3×340mA | RGB |
| RLL-M200RC-48R | Die-cast Aluminum | 24×2W | 48W | DC24V | 3×680mA | RGB |
| RLL-M200RC-60R | Die-cast Aluminum | 30×2W | 60W | DC24V | 3×680mA | RGB |
| Model (3 degree) | Housing Material | Light Source | Power | Operating Voltage | Drive Current | Color Temperature |
|---|---|---|---|---|---|---|
| RLL-M200RC-27M | Die-cast Aluminum | 9X3W | 27W | AC220V | 1020mA | Fixed |
| RLL-M200RC-36M | Die-cast Aluminum | 12X3W | 36W | AC220V | 1020mA | Fixed |
| RLL-M200RC-45M | Die-cast Aluminum | 9X5W | 45W | AC220V | 1650mA | Fixed |
| RLL-M200RC-60M | Die-cast Aluminum | 12X5W | 60W | AC220V | 1650mA | Fixed |
PARAMETERS
Color: RGB/RGBW/Day white/ Warm white/ Yellow
Light sources: High Power 1W/3W
Beam angle: 3°, 8°, 15°, 30°, 45°, 60°，more available options
Work temperature: -20℃～50℃
Storage temperature: -40℃～70℃
Input voltage: DC24V/AC24V/AC220V
Control mode: DMX512
IP rating: IP67
Life: 50,000h
