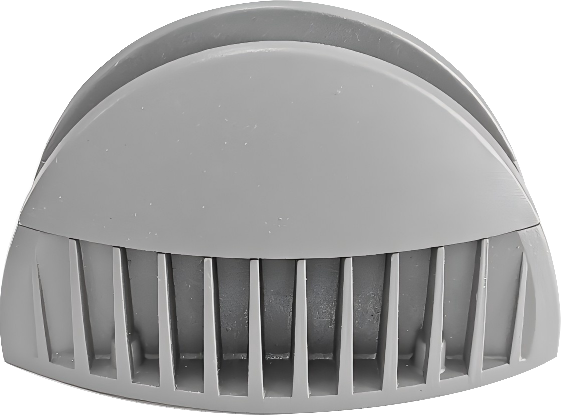

Window Light RLL-C120
◎Made of aluminum with modern design
◎Patented waterproof structure
◎Low thermal resistance paths design for heat dissipation
◎Professional optical design with high light-extraction efficiency
◎High efficiency, low heat power supply design
◎Outdoor lightning and ESD protection
Description
| Model | Housing Material | Light Source | Power | Operating Voltage | Color Temperature | Drive Current |
|---|---|---|---|---|---|---|
| RLL-C120-3M | Die-cast Aluminum | 3×1W | 3W | AC220V | 340mA | Fixed |
| RLL-C120-6M | Die-cast Aluminum | 3×2W | 6W | AC220V | 680mA | Fixed |
| RLL-C120-9M | Die-cast Aluminum | 3×3W | 9W | AC220V | 1000mA | Fixed |
| RLL-C120-15M | Die-cast Aluminum | 3×5W | 15W | DC24V | 1650mA | Fixed |
PARAMETERS
Color: red/green/ blue/Day white/ Warm white/ Yellow
Light sources: High Power 1W/2W
Beam angle: 8×180°
Work temperature: -20℃~50℃
Storage temperature: -40℃～70℃
Input voltage: DC24V/AC24V/AC220V
IP rating IP67
Life: 50,000h
