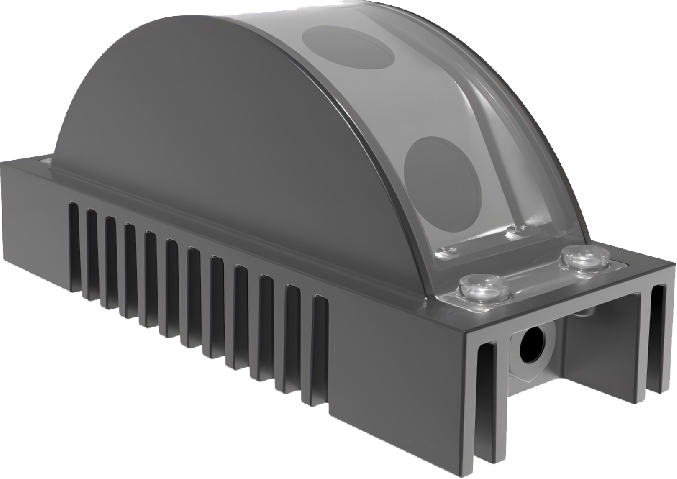

Window Light RLL-C160
◎Made of aluminum with modern design
◎PC cover structure design patent
◎Patent structure design, waterproof treatment
◎Low thermal resistance paths design for heat dissipation
◎Professional optical design with high light-extraction efficiency (LEE) and uniformity of illumination
◎Low heating power supply design with high energy efficiency and high power factor (PF) value
◎Outdoor lightening protection
Description
| Model | Housing Material | Light Source | Power | Operating Voltage | Drive Current | Color Temperature |
|---|---|---|---|---|---|---|
| RLL-C160-4M | Die-cast Aluminum | 4×1W | 4W | AC220V | 340mA | Fixed |
| RLL-C160-8M | Die-cast Aluminum | 4×2W | 8W | AC220V | 680mA | Fixed |
| RLL-C160-12M | Die-cast Aluminum | 4×3W | 12W | AC220V | 1000mA | Fixed |
| RLL-C160-20M | Die-cast Aluminum | 4×5W | 20W | DC24V | 1650mA | Fixed |
PARAMETERS
Color: red/green/ blue/Day white/ Warm white/ Yellow
Light sources: High Power 1W/3W
Beam angle: 10×150°
Work temperature: -20℃~50℃
Storage temperature: -40℃～70℃
Input voltage: DC24V/AC24V/AC220V
IP rating IP67
Life: 50,000h
