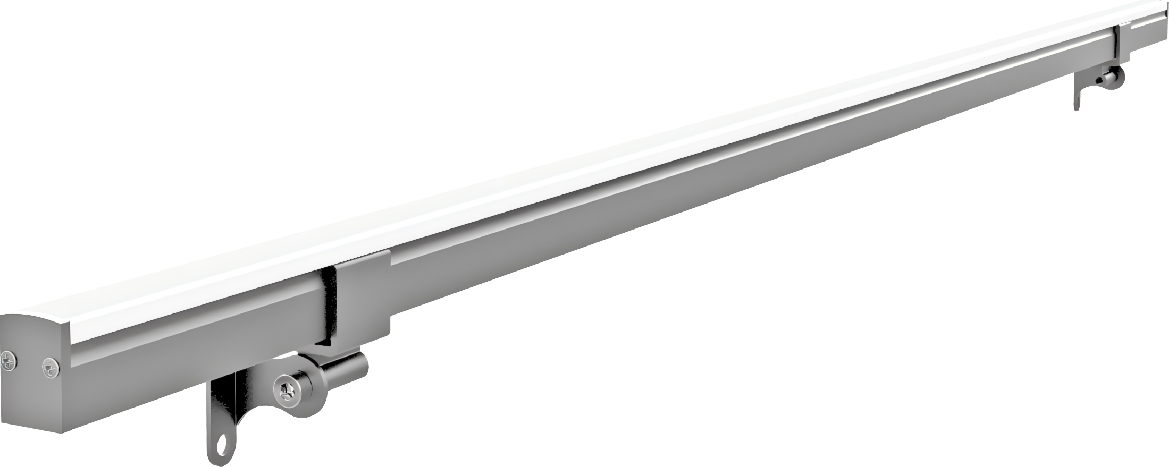

Linear Light RLL-X17L
◎Imported frosted anti-glare lampshade
◎Made of aluminum with modern design
◎Low thermal resistance paths design for heat dissipation
◎Waterproof design with high-thermal-conductivity silicone fully sealed
◎Thermoelectric separation
◎Outdoor lightening and ESD protection
Description
| Model | Housing Material | Light Source | Power | Operating Voltage | Length | Color Temperature |
|---|---|---|---|---|---|---|
| RLL-X17L-6M | Aluminum Alloy | 24PCS | 6W | AC 220V | 500mm | Fixed |
| RLL-X17L-7.5M | Aluminum Alloy | 30PCS | 7.5W | AC 220V | 500mm | Fixed |
| RLL-X17L-12M | Aluminum Alloy | 48PCS | 12W | AC 220V | 1000mm | Fixed |
| RLL-X17L-15M | Aluminum Alloy | 60PCS | 15W | AC 220V | 1000mm | Fixed |
| RLL-X17L-6R | Aluminum Alloy | 24PCS | 6W | AC 220V | 500mm | RGB |
| RLL-X17L-7.5R | Aluminum Alloy | 30PCS | 7.5W | AC 220V | 500mm | RGB |
| RLL-X17L-12R | Aluminum Alloy | 48PCS | 12W | DC 24V | 1000mm | RGB |
| RLL-X17L-15R | Aluminum Alloy | 60PCS | 15W | DC 24V | 1000mm | RGB |
PARAMETERS
Color: RGB/RGBW/Day white/ Warm white/ Yellow
Light source: 5050/0.3W 2835/0.2W
Beam angle: 120°
Work temperature:-20℃～50℃
Storage temperature: -40℃～70℃
Input voltage: DC24V
Control: DMX512
IP rating: IP66
Lifespan: 50,000h
