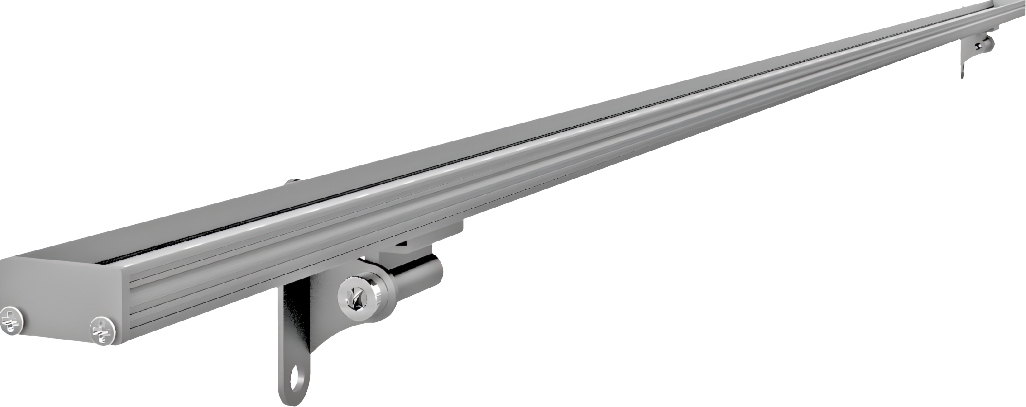

Linear Light RLL-X21L
◎Made of aluminum with modern design
◎Low thermal resistance paths design for heat dissipation
◎Fully encapsulated with high?thermal?conductivity silicone for waterproofing; no PC cover
◎Thermoelectric separation
◎Outdoor lightning and ESD protection
Description
| Model | Housing Material | Light Source | Power | Operating Voltage | Length | Color Temperature |
|---|---|---|---|---|---|---|
| RLL-X21L-6M | Aluminum Alloy | 24PCS | 6W | DC 24V | 500mm | Fixed |
| RLL-X21L-7.5M | Aluminum Alloy | 30PCS | 7.5W | DC 24V | 500mm | Fixed |
| RLL-X21L-12M | Aluminum Alloy | 48PCS | 12W | DC 24V | 1000mm | Fixed |
| RLL-X21L-15M | Aluminum Alloy | 60PCS | 15W | DC 24V | 1000mm | Fixed |
PARAMETERS
Color: Day white/ Warm white/ Yellow
Light source: 5050/0.3W 2835/0.2W
Beam angle: 120°
Work temperature:-20℃～50℃
Storage temperature: -40℃～70℃
Input voltage: DC24V
IP rating: IP66
Lifespan: 50,000h
